Flame Retardant Flexible Polyurethane Hose

Light weight and flexible Polyether-Polyurethane ducting, flame-retardant. Suction and conveying of abrasive particles or granules for high temperature applications

key word:

Category:

Enclosure:

Hotline:

Hotline:

Flame Retardant Flexible Polyurethane Hose

Product

lnner Diameter (mm)	Wall Thickness (mm)	Overpressure (bar)	Vacuum (bar)	Standard Length (m)
25	0.6	1.600	0.360	50
32	0.6	1.260	0.340	50
38	0.6	1.060	0.320	50
50	0.6	0.815	0.260	50
64	0.6	0.630	0.180	50
70	0.6	0.585	0.150	50
75	0.6	0.545	0.140	50
80	0.6	0.510	0.130	50
90	0.6	0.455	0.115	50
100	0.6	0.410	0.090	50
110	0.6	0.375	0.080	50
120	0.6	0.340	0.075	50
125	0.6	0.330	0.060	50
130	0.6	0.135	0.060	50
140	0.6	0.295	0.060	50
150	0.6	0.275	0.055	50
170	0.6	0.255	0.050	50
175	0.6	0.240	0.045	50
180	0.6	0.235	0.040	50
200	0.6	0.230	0.040	50
210	0.6	0.205	0.038	50
220	0.6	0.190	0.035	50
225	0.6	0.185	0.032	50
250	0.6	0.180	0.030	50
275	0.6	0.165	0.025	50
275	0.6	0.150	0.020	50
300	0.6	0.135	0.015	50
325	0.6	0.130	0.010	50
350	0.6	0.115	0.010	50
375	0.6	0.100	0.010	50
400	0.6	0.080	0.010	50

Application

*for the delivery of cold air and warm air

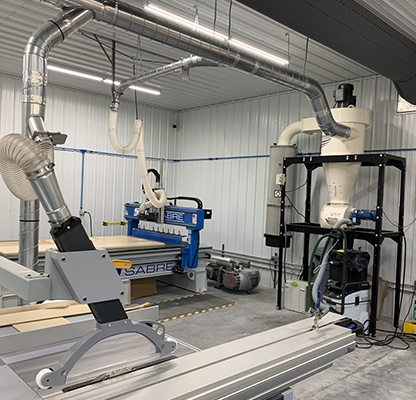

*for the suction of wood dust and wood chips on wood processing machines

*for de-dusting and suction plants, industrial vacuum cleaners, suction of paper and textile fibres,dust powder,fibers,chips

*as resistant protection

Properties

Ideal for moving large volumes of air in portable or permanent ventilation/exhaust systems
Wearstrip offers additional external abrasion & drag resistance
Great compressibility
Retractability allows for convenient storage & easy transport in a fraction of its fully extended length
Listed as UL94-V1、UL94-V1、UL94-V0 flame retardant
Shown with optional cuff

Handings *Dust, Powder, Fibres

Material *Polyurethane

Thickness *0.6MM

Temperature * -40℃ to 90℃ (Short-term 125°C)

The tolerance for all parameters is 5%. All parameters apply to room temperature (approx. 22 ° C).

Application

wood making

solid collection

air suction
