Polyurethane pipe tube Flame Retardant

Light weight and flexible Polyether-Polyurethane ducting, flame-retardant. Suction and conveying of Air, dust, fume.

key word:

Polyurethane hose,ducting hose plastic tubes

Category:

Enclosure:

Hotline:

Hotline:

Polyurethane pipe tube Flame Retardant

Product

lnner Diameter (mm)	Wall Thickness (mm)	Overpressure (bar)	Vacuum (bar)	Standard Length (m)
19	0.6	2.250	0.460	50
25	0.6	1.600	0.360	50
32	0.6	1.260	0.340	50
38	0.6	1.060	0.320	50
45	0.6	1.015	0.300	50
50	0.6	0.815	0.260	50
63	0.6	0.630	0.180	50
75	0.6	0.545	0.140	50
90	0.6	0.455	0.115	50
100	0.6	0.410	0.090	50
110	0.6	0.375	0.080	50
120	0.6	0.340	0.075	50
125	0.6	0.330	0.060	50
140	0.6	0.295	0.060	50
150	0.6	0.275	0.055	50
175	0.6	0.235	0.040	50
200	0.6	0.205	0.035	50
225	0.6	0.180	0.030	50
250	0.6	0.165	0.015	50
275	0.6	0.150	0.015	50
300	0.6	0.135	0.010	50

Application

*for application where flame-retardant hoses for demanded

*for abrasive solids such as dust, powder, fibres and chips

*for de-dusting and suction plants, industrial vacuum cleaners, suction of paper and textile fibres,dust powder,fibers,chips

*as resistant protection

Properties

Ideal for moving large volumes of air in portable or permanent ventilation/exhaust systems
Wearstrip offers additional external abrasion & drag resistance
Great compressibility
Retractability allows for convenient storage & easy transport in a fraction of its fully extended length
Listed as UL94-V1、UL94-V1、UL94-V0 flame retardant
Shown with optional cuff

Handings *Dust, Powder, Fibres

Material *Polyurethane

Thickness *0.6MM

Temperature * -40℃ to 90℃ (Short-term 125°C)

The tolerance for all parameters is 5%. All parameters apply to room temperature (approx. 22 ° C).

Application

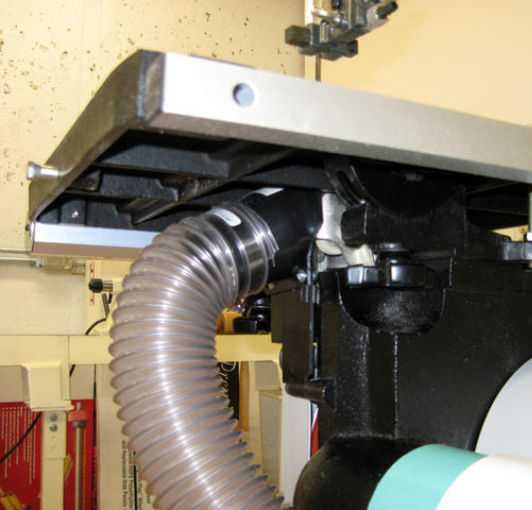

wood making

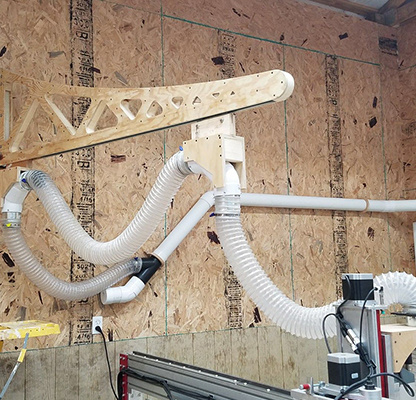

solid collection

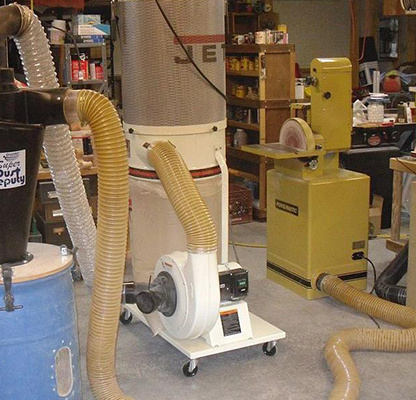

air suction

PRE

nothing

Flame Retardant Flexible Polyurethane Hose

PRE

nothing

Flame Retardant Flexible Polyurethane Hose

Consulting service

Recommendations

PUGS04 Very Light Flexible Polyurethane Hose

Abrasion resistant ester-based polyurethane hose(wall thickness between the spirals ca. 0,4mm), copper plated spring steel spiral embedded into wall.

PUGS04-M Very Light Flexible Polyurethane Hose

Abrasion resistant ether-based polyurethane hose(wall thickness between the spirals ca. 0,4mm), copper plated spring steel spiral embedded into wall.

PUGS41 Extremely Flexible Polyurethane Hose

Abrasion resistant ester-based extremely flexible polyurethane hose(wall thickness between the spirals ca. 0,4mm), copper plated spring steel spiral embedded into wall, excellent spring back performance.

PUGS06 Light Flexible Polyurethane Hose

Abrasion resistant ester-based polyurethane hose(wall thickness between the spirals ca. 0,6mm), copper plated spring steel spiral embedded into wall.

PUGS06-M Light Flexible Polyurethane Hose

Abrasion resistant ether-based polyurethane hose(wall thickness between the spirals ca. 0,6mm), copper plated spring steel spiral embedded into wall.

PUGS09 Medium Weight Flexible Polyurethane Hose

Abrasion resistant ester-based polyurethane hose(wall thickness between the spirals ca. 0,9mm), copper plated spring steel spiral embedded into wall.
