PUGP-MBG Food Grade Smooth Inner Flexible Polyurethane Suction Hose
Very smooth inner, extruded ester-based polyurethane hose(FDA), transparent with stainless spring steel spiral.
key word:
Category:
Products
PU Smooth Inner Hose
Enclosure:
Hotline:
Hotline:
PUGP-MBG Food Grade Smooth Inner Flexible Polyurethane Suction Hose
|
Inner Diameter (mm) |
Wall thickness (mm) |
Overpressure (bar) |
Vacuum (bar) |
Standard length (m) |
|
| 25 | 3.5 | 5 | 1.00 | 50 | |
| 32 | 4.0 | 5 | 1.00 | 50 | |
| 38 | 4.0 | 4 | 1.00 | 50 | |
| 45 | 4.0 | 4 | 1.00 | 50 | |
| 51 | 4.0 | 4 | 1.00 | 50 | |
| 64 | 4.5 | 2 | 1.00 | 30 | |
| 75 | 5.0 | 2 | 0.50 | 50 | |
| 100 | 5.5 | 1 | 0.50 | 50 | |
Application
Universal and abrasion-proof suction and transport hose, especially suitable:
* for abrasive solids such as dust,powder, fibres, chips and granulates
* for gaseous and liquid media,drinks,syrup

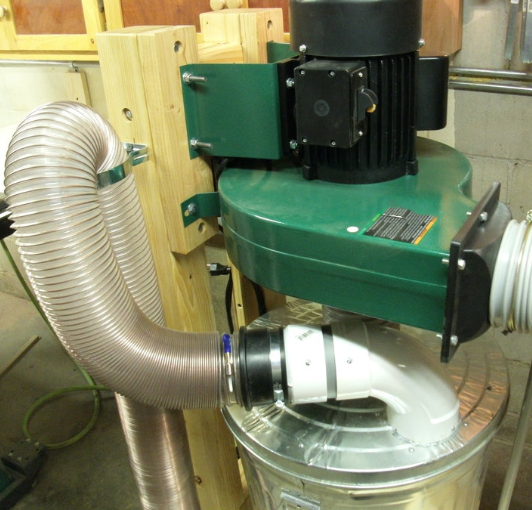

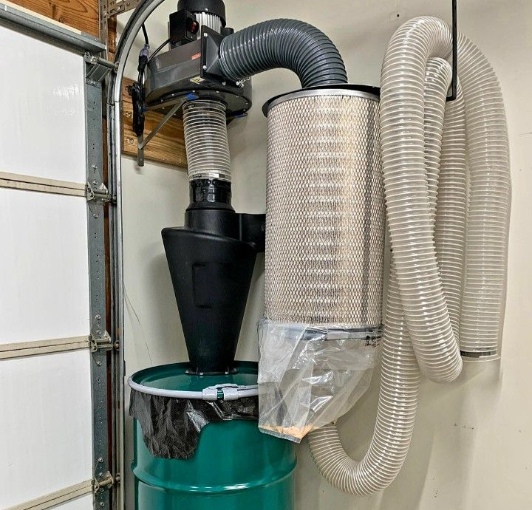

* for de-dusting and suction plants, industrial vacuum cleaners, suction of paper and textile fibres
* as resistant protection
Properties
*extremely abrasion-proof with reinforcement underneath wire,
*smooth interior, optimized flow properties
*increased pressure and vacuum resistance
*high tensile strength and tear resistant
*good resistance to mineral oils,chemicals,UV and ozone
*softener and halogen free
*capable of electro-static discharge (according to BGR 132, formerly ZH 1/200) by grounding the spiral
Material *Polyether Polyurethane
Thickness *Custom
Temperature *-40°F to 90°F
Wood Processing
Solid Collection
Air Suction
