PUGS15 Heavy Flexible Polyurethane Hose
Abrasion resistant ester-based polyurethane hose(wall thickness between the spirals ca. 1.5mm), copper plated spring steel spiral embedded into wall.
key word:
Category:
Products
PU Steel Wire Flexible Hose
Enclosure:
Hotline:
Hotline:
PUGS15 Heavy Flexible Polyurethane Hose
|
Inner Diameter (mm) |
Wall thickness (mm) |
Overpressure (bar) |
Vacuum (bar) |
Standard length (m) |
|
| 25 | 1.5 | 3.655 | 1.000 | 10/20 | |
| 30 | 1.5 | 3.450 | 0.980 | 10/20 | |
| 38 | 1.5 | 3.080 | 0.950 | 10/20 | |
| 40 | 1.5 | 3.050 | 0.950 | 10/20 | |
| 50 | 1.5 | 2.450 | 0.930 | 10/20 | |
| 60 | 1.5 | 2.060 | 0.810 | 10/20 | |
| 64 | 1.5 | 1.910 | 0.750 | 10/20 | |
| 70 | 1.5 | 1.780 | 0.670 | 10/20 | |
| 80 | 1.5 | 1.560 | 0.560 | 10/20 | |
| 90 | 1.5 | 1.300 | 0.525 | 10/20 | |
| 100 | 1.5 | 1.250 | 0.390 | 10/20 | |
| 110 | 1.5 | 1.140 | 0.360 | 10/20 | |
| 115 | 1.5 | 1.090 | 0.335 | 10/20 | |
| 120 | 1.5 | 1.050 | 0.315 | 10/20 | |
| 130 | 1.5 | 0.965 | 0.270 | 10/20 | |
| 150 | 1.5 | 0.840 | 0.200 | 10/20 | |
| 180 | 1.5 | 0.700 | 0.150 | 10/20 | |
| 200 | 1.5 | 0.630 | 0.135 | 10/20 | |
| 250 | 1.5 | 0.510 | 0.085 | 10 | |
| 300 | 1.5 | 0.420 | 0.070 | 10 | |
| 350 | 1.5 | 0.360 | 0.055 | 10 | |
Application
Universal and abrasion-proof suction and transport hose, especially suitable:
* for abrasive solids such as dust,powder, fibres, chips and granulates
* for gaseous and liquid media,drinks,syrup
* for de-dusting and suction plants, industrial vacuum cleaners, suction of paper and textile fibres
Properties
* Smooth interior prevents clogs and maximizes airflow.
*Cost-effective smooth interior hose.
*Excellent flexibility and crush resistant.
*External helix acts as wearstrip, protecting the outside of the hose.
*Available in flame retardant version.
Handings *Dust，Material
Material *Ester-Polyurethane
Thickness *1.5 MM
Temperature * -40℃ to 90℃ (Short-term 125°C)
The tolerance for all parameters is 5%. All parameters apply to room temperature (approx. 22 ° C).

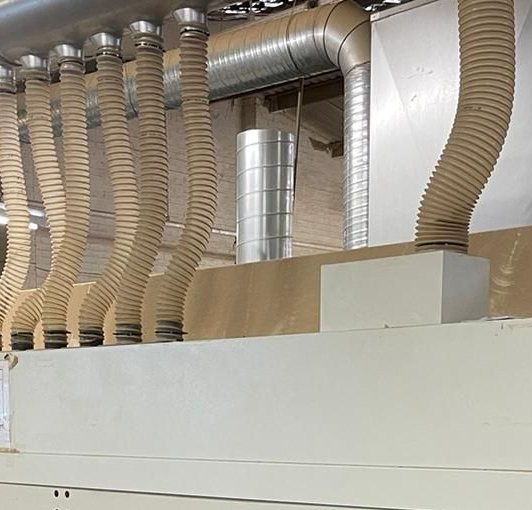

woodworking
solid collection
air suction
