Anti-Static Reinforced Polyurethane Hose

Highly flexible clear polyurethane hose reinforced with a rigid white external PVC helix & an embedded copper grounding wire.

key word:

Category:

Enclosure:

Hotline:

Hotline:

Anti-Static Reinforced Polyurethane Hose

Product

Inner Diameter (mm)	Wall Thickness (mm)	Overpressure (bar)	Vacuum (bar)	Standard Length (m)
19	0.60	2.250	0.460	10
25	0.60	1.600	0.360	10
32	0.60	1.260	0.340	10
38	0.60	1.060	0.320	10
45	0.60	1.015	0.300	10
50	0.60	0.815	0.260	10
63	0.60	0.630	0.180	10
75	0.60	0.545	0.140	10
90	0.60	0.455	0.115	10
100	0.60	0.410	0.090	10
110	0.60	0.375	0.080	10
120	0.60	0.340	0.075	10
125	0.60	0.330	0.060	10
140	0.60	0.295	0.060	10
150	0.60	0.275	0.055	10
175	0.60	0.235	0.040	10
200	0.60	0.205	0.035	10
225	0.60	0.180	0.030	10
250	0.60	0.165	0.015	10
275	0.60	0.150	0.015	10
300	0.60	0.135	0.010	10

Application

*For the transport of bulk materials

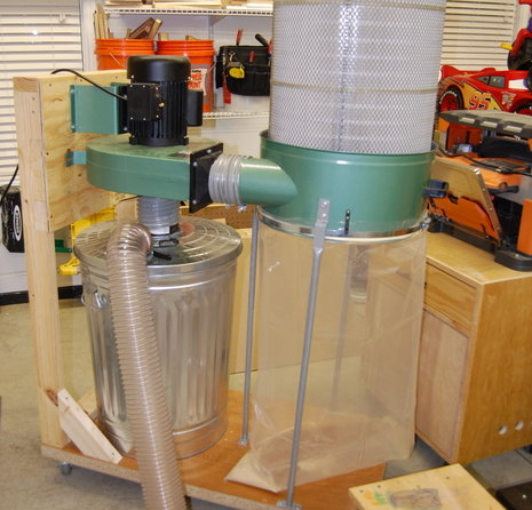

*Extraction of fine abrasive particles: wood dust, powders, sawdust, pollen, etc.

*Extraction of air, oil vapors, gases

^Features

^{*Flexible with great abrasion resistance

*Smooth interior assures minimal friction loss, efficient air flow & elimination of material build-up

*Enclosed copper grounding wire reduces static build-up in material handling applications

*Permanent and non-humidity dependent ESD (electrostatic discharge) protection

*Ideal for plastic pellet & powder transfer applications

*Surface Resistivity Level:108-1010 Ohms/Square}

Material *Polyurethane

Handling *Dust, Fume, Powder

Thickness * 0.6mm

Temperature * -40°F to 90°F (short time on 125℃)

The tolerance for all parameters is 5%. All parameters apply to room temperature (approx. 22 ° C).

Application

wood making

solid collection

air suction
