PUGS04 Very Light Flexible Polyurethane Hose

Abrasion resistant ester-based polyurethane hose(wall thickness between the spirals ca. 0,4mm), copper plated spring steel spiral embedded into wall.

key word:

Category:

Enclosure:

Hotline:

Hotline:

PUGS04 Very Light Flexible Polyurethane Hose

Product

Inner Diameter (mm)	Wall Thickness (mm)	Overpressure (bar)	Vacuum (bar)	Standard Length (m)
50	0.40	0.695	0.240	10
60	0.40	0.600	0.200	10
64	0.40	0.535	0.170	10
70	0.40	0.490	0.160	10
75	0.40	0.470	0.150	10
80	0.40	0.435	0.120	10
90	0.40	0.390	0.100	10
100	0.40	0.350	0.080	10
110	0.40	0.330	0.075	10
120	0.40	0.290	0.070	10
125	0.40	0.280	0.055	10
150	0.40	0.175	0.045	10
175	0.40	0.165	0.040	10
200	0.40	0.130	0.030	10
225	0.40	0.115	0.025	10
250	0.40	0.105	0.015	10
300	0.40	0.100	0.010	10

Application

* for the transport of bulk materials

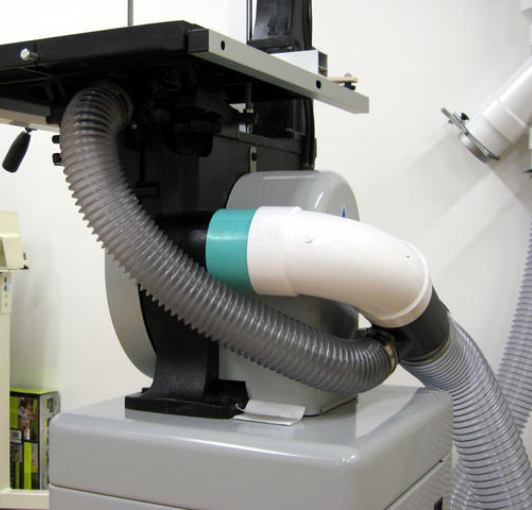

* extraction of fine abrasive particles: wood dust, powders, sawdust, pollen, etc.

* extraction of air, oil vapors, gases

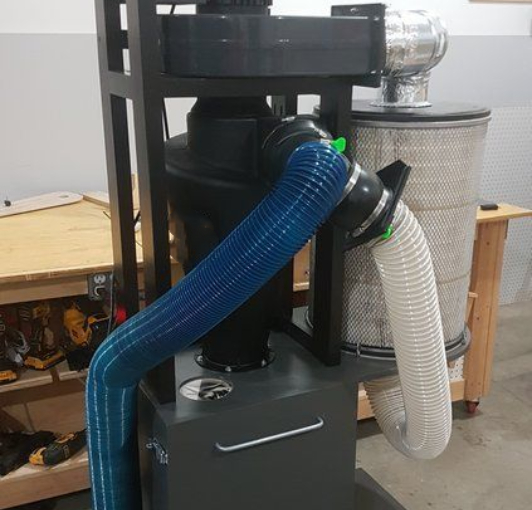

* for ventilation and dedusting systems

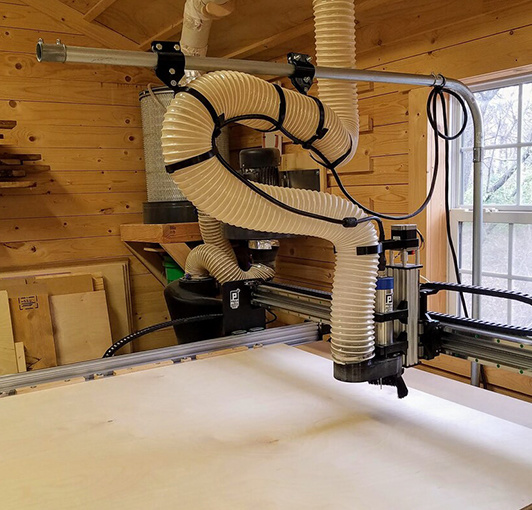

* for CNC equipment in dynamic operation

^Features

^{*Great flexibility with tight bending characteristics

*Good chemical & moisture resistance

*Good compressibility

*Excellent choice for ventilation applications, dust & fume removal}

Material *Ester-Polyurethane

Handling *Air，Fume, Dust

Thickness * 0.4mm

Temperature * -40℃ to 90℃ (Short-term 125°C)

The tolerance for all parameters is 5%. All parameters apply to room temperature (approx. 22 ° C).

Application

wood making

solid collection

air suction
